Design
Process
This project highlights the importance of balancing aesthetics and functionality when designing structures that are both visually appealing and practical. We were tasked with redesigning an existing bridge to allow water traffic to pass through a 30' x 40' opening, which required us to carefully consider both the form and function of the design.
Bridge Span Ideas
Chaotianmen Bridge
Chongqing, China
Arch Bridge
Lewis and Clark Bridge
Longview, Washington
Cantilever Bridge
The El Ferdan Railway Bridge
Ismailia, Egypt
Truss Bridge
Movement Ideas
Wine Bottle Opener
Icecream Scooper
Umbrella
3 x 3 Conceptual Combination Table
Selected Concept

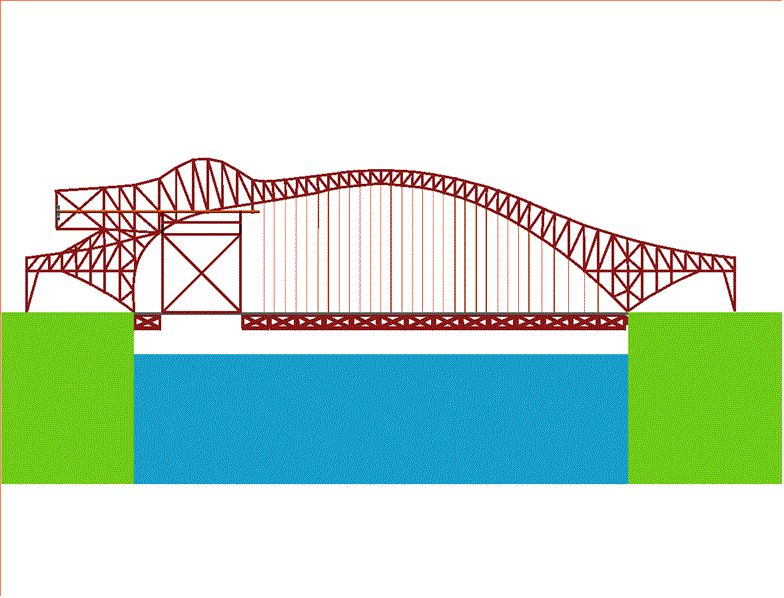

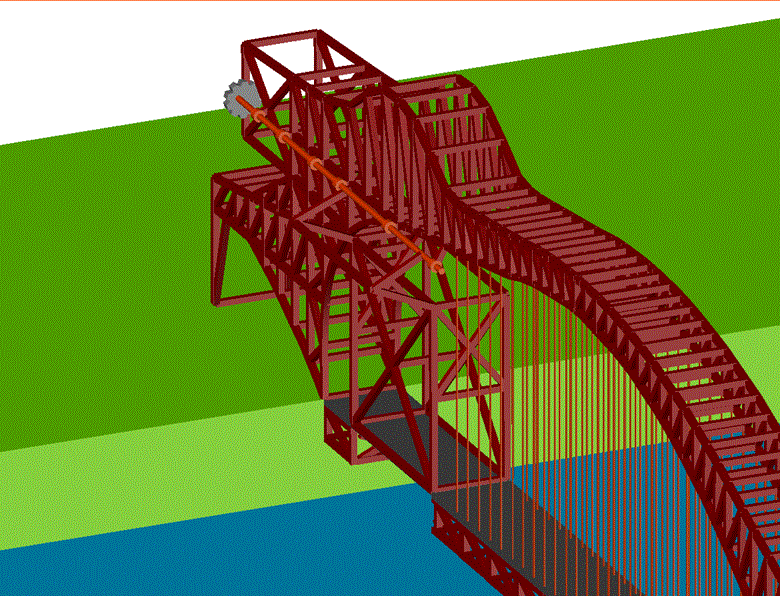

3D Bridge Process
Views
North West View
Elevated perspective showcasing the structural intersection of the bridge span and the primary arch support system.
North East View
Detailed rendering focusing on the cantilevered trusses and the interaction of form between the upper and lower deck levels.
South East View
Structural profile highlighting the geometric complexity and the rhythmic repetition of the vertical bridge members.
South West View
Comprehensive view showcasing the bridge span in its environmental context, emphasizing the architectural form and massing.
